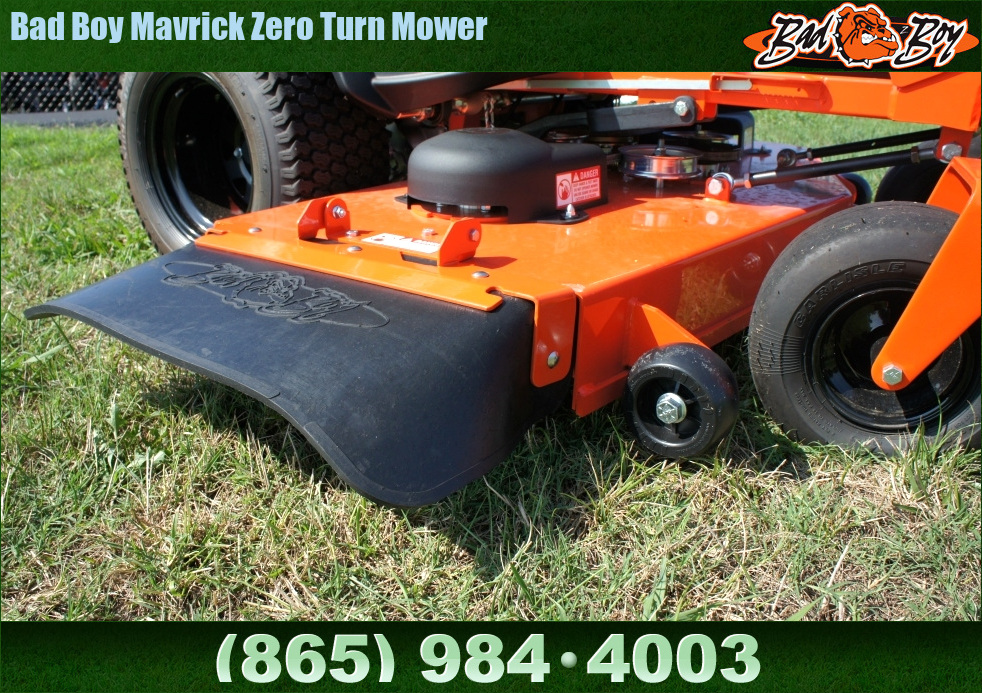

Bad Boy Mavrick Zero Turn Mower

Bad Boy Mavrick Zero Turn Mower

MOWER SPECIFICATIONS
Cutting Width 4800 - 48"; 5400 - 54"; 6000 - 60"
Cutting Height 1.5" – 4" with Deck Height Control System
Blades 4800 - 1/4" x 2 1/2" x 16 1/2", High Lift, Heat Treated
5400 - 1/4" x 2 1/2" x 18 3/4", High Lift, Heat Treated
6000 - 1/4" x 2 1/2" x 20 1/2", High Lift, Heat Treated
Lift and Height Adjustment Instant Lift Electric Actuator
Blade Belt Single V-Belt Spring Tension
Anti-Scalp Rollers 4800 - 4 Total (2 Front, 2 Rear)
5400 - 4 Total (2 Front, 2 Rear)
6000 - 6 Total (4 Front, 2 Rear)
Deck Flotation Floats On 2 Chains & 2 Front Leveling Arms
Deck Thickness 3/16" Thick Solid Steel
ENGINE SPECIFICATIONS
Gross Horsepower/cc 726cc Air-Cooled Kawasaki FS
Cylinders V-Twin
Displacement 726 cc
Maximum Torque 40 ft. lbs. @ 2,600 RPM
Fuel Requirement Unleaded Gasoline (87 Octane or higher)
Fuel Capacity 6.5 Gallons
Fuel Filter Replaceable Automotive Type
Cooling System Air-Cooled
Ignition Electronic
Starter 12 Volt
Charging System 20 Amp
DRIVE SYSTEM SPECIFICATIONS
Transmission Hydro-Gear® 3200 Dual Integrated Hydrostatic Transaxle
Pump Drive Integrated Axial Piston Pump & Motor w/Gear Reduction
Wheel Drive Integrated With Commercial Grade Gear Reduction
Hydrostatic System Oil 20W50 Motor Oil
Hydraulic Filter 25 Micron, Replaceable Spin-On Type, 1 Per Pump
Pumps (2) 10cc Pump And Motor Integrated In One Unit
Hydraulic Coolers (2) 7" Cooling Fan; One per unit
MOWER DIMENSIONS
Weight 4800 - 862 lbs.; 5400 - 871 lbs.; 6000 - 925 lbs.
Overall Height 49"
Overall Width 4800 - 49 1/2"; 5400 - 55 1/2"; 6000 - 61 1/2"
Overall Length 75"
Tire to Tire Width 46 1/2"
Tires - Front 13 x 6.5 – 6 Smooth Tread
Tires - Rear 23 x 10.5 - 12 Turf Tread
Steering Dual Lever Steering, Independent Control
Turning Radius Zero Turn - Zero Degrees, Turns Within Unit Length
Ground Speed (forward) Up To 9 mph
Parking Brake Internal Parking Brake
